Mixer

Double Planetary Mixer

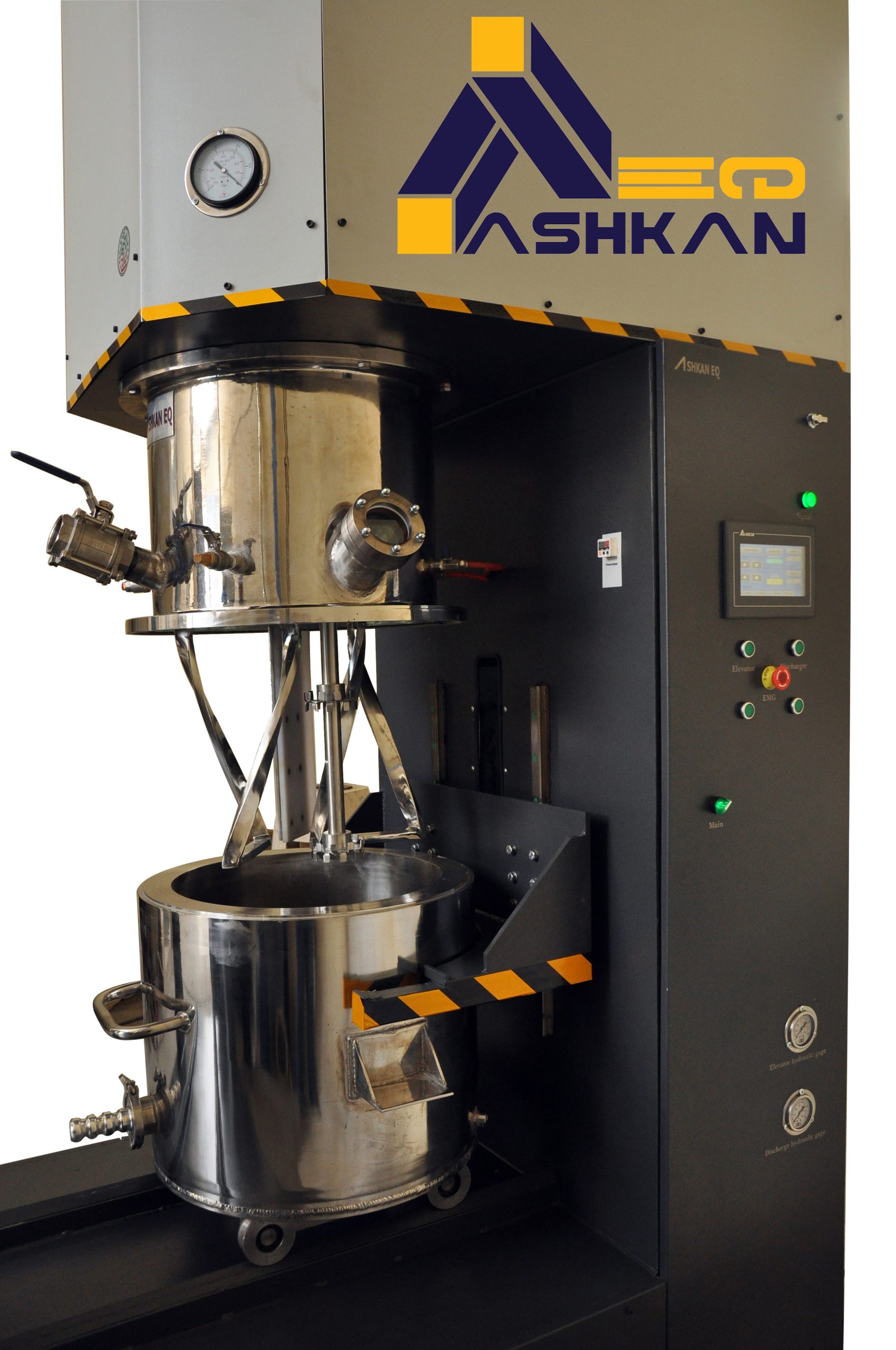

Double Planetary Mixer consists of two identical blades that rotate on their own axes, while they orbit the mix vessel on a common axis. The blades continuously advance along the periphery of the vessel, removing material from the vessel wall and transporting it to the interior. In only 36 revolutions around the vessel, the two blades pass through every point in the product zone, physically contacting the entire batch.

Double Planetary Mixers are available in both Laboratory and Production models, ranging from 5 to 1500 liter mixing capacity.

Application: Double planetary mixers are ideal for low shear processing of viscous materials. Viscous products possessing shear-sensitive behavior, fragile components or abrasive properties require gentle but thorough mixing. In most cases, a double planetary mixer is the best choice for processing such applications.

Planetary Mixer Applications

Planetary Mixers are used for a wide variety of applications including:

Medical pastes Metal cleaning compounds Metallic slurries Microwave absorbers Ointments Lubricants Vacuum drying of metal powders Abrasives Animal health care products Automotive catalysts Battery pastes Bone graft pastes Brazing materials Candy Casting materials Filled resins Fillings for chocolates and desserts Fuel cell pastes

Pesticides Pharmaceutical granulations Pigment dispersions Plastisol Polyurethanes Refractory materials Rocket insulation Rubber adhesives Caulking compounds Ceramic composites Chemicals Collagen solutions Conductive inks Cosmetic and pharmaceutical gels Cream cheese spreads Dental composites Electronic coatings Hot melts Grinding wheels

Sheet molding compounds Silicones Solder pastes Sound deadeners Specialty concrete Structural adhesives Syntactic foams Technical polymers Thermal greases Thick film inks Toothpaste Urethane sealants Icing Injection molding feedstock Joint compounds Energetics and propellants Engineered plastic resins Epoxies
